Name: IP65 Transparent Label Sensor Detection Inspecting Counting Opaque Transparent Printed Labels
Brand: BOJKE
Price: 1 USD

Brand Name : BOJKE

Model Number : PUD-200NP

Certification : CE

Place of Origin : Dongguan China

MOQ : 1pcs

Payment Terms : T/T

Supply Ability : 150k

Delivery Time : 5~8 work days

Packaging Details : kraft box with carton box;

Product name : Transparent label sensor

Power supply : DC 12~24V

Slot width : 0.35mm

Slot length : 85mm

Detected object : Transparent or opaque labels

Response time : less than 1ms

Repeatability : less than 5%

Output : NPN and PNP

Contact Now

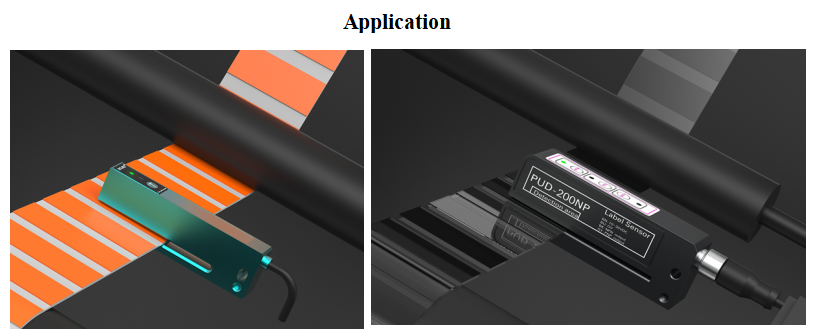

Label Sensor Detection Inspecting Counting Transparent Opaque Printed Labels

IP65 Transparent Label Sensor Detection Inspecting Counting Opaque Transparent Printed Labels

Infrared detection and ultrasonic detection and capacitive detection are available

Stably detects those labels with 0.35mm gaps and 85mm length
With two-point and single-point teaching function

Model	PUD-200NP
Detection Mode	capacitive sensing
Slot Wideth	0.35mm
Slot depth	85mm
Hysteresis Range	<20%
Detection Object	transparent and opaque label
Repeat Accuracy	<5%
Sensitivity Adjustment	button adjustable
Output Mode	NPN and PNP two channel output at same time
Switch Mode	NO/NC switchable
Response Time	<1ms
Response Frequency	2KHz
Working Voltage	DC 12~24V ±10%
Residue Voltage	<2V (load current 50mA, cable 2 meter)
Max Load Current	100mA
Consumption (no-load) current	<40mA
Ambient Temperature	working:-10℃~55℃；storage:-25℃~70℃,no freezing
Ambient Humidity	working:35%~85% RH；storage:35%~95% RH,no condensation
Protection Circuit	polarity reversal protection/surge protection/ short circuit protection
Protection Level	IP65
Indicator Light	Red: working indicator light; Green: output indicator light
Connection Type	4-PIN connector
Housing Material	aluminum alloy+anodized
Withstand Voltage	AC 500V, 50/60Hz, 1 minute
Vibration Resistance	10～55Hz, dual amplitude 1.5mm, X/Y/Z directions each 2 hours
Impact Resistance	500m/S2, X,Y,Z directions each 3 times
Insulation Impedance	above 20MΩ (DC 500V megohmmeter)
